The flight version of this board is now in orbit, working on the Duplex Satellite.

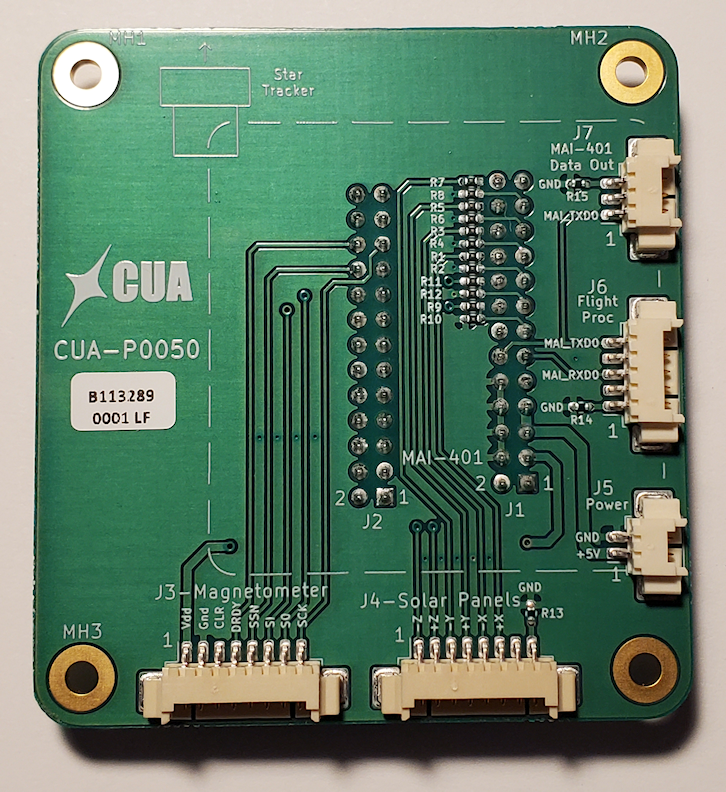

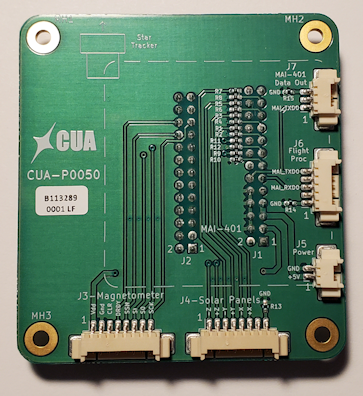

This PCB sits atop the MAI-401 ADACS and connects it to the power supply, flight processor, magnetometer, solar panel voltages, and an external data port. It can be seen mounted in the Duplex Test Box.
|
|
|
The flight version of this board is now in orbit, working on the Duplex Satellite. |

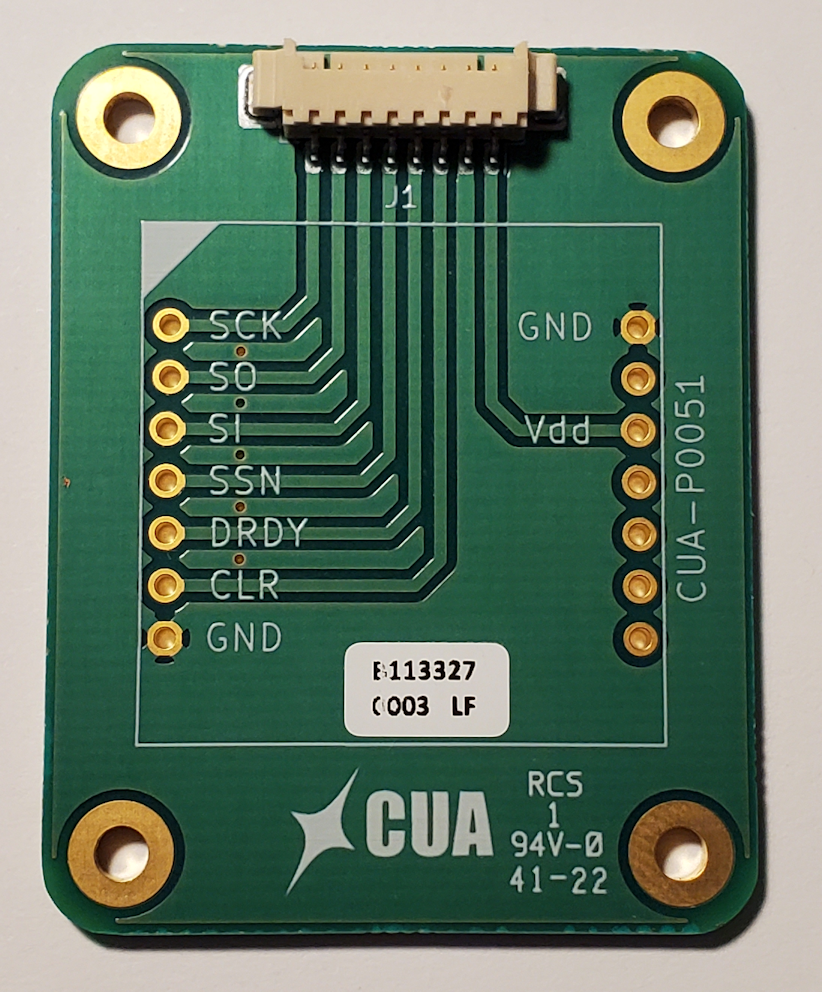

The magnetometer was soldered into this PCB to connect it through an 8-pin cable to the MAI-401 ADACS.
|
|
The flight version of this board is now in orbit, working on the Duplex Satellite. |
I designed a circuit board for the first version of the Rogowski Integrator. More info here.
